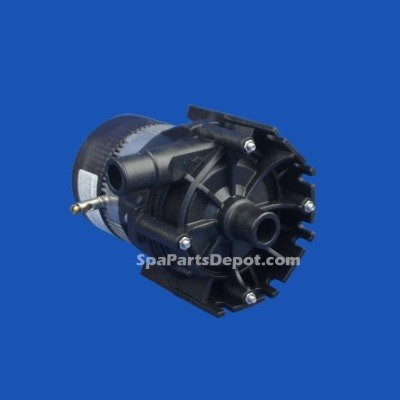

Laing Ecocirc E10-NSTN1W-19 3/4" Thrd Circ. Spa Pump 115V LHB07100141
Electrical Cord attached approx. 45" long, with 3 wires, NO connectors on end.


OEM Code: 74009, LHB07100141

Replaces
SM909NTW-14 3/4' Barb 115V
SM909NTW-18 3/4' Barb 115V
SM909NTW-26 3/4' Barb 115V
SM909NTW-18 3/4' Barb 115V
SM1212NTW-26 3/4' Barb 115V

Allied Cross Reference
1-00-0071A
1-00-0171 Laing 909-NT-26
1-00-0175 Laing 909-NT-18
1-00-0169 Laing 909-NT-14

Hydroquip

• 10-0124

The Ecocirc
auto and vario were designed with the highly efficient electronically commutated permanent magnet motor (ECM technology).

Also Replaces

• E10-NSTNNN1W-19
• 7400
• 10-0124

Our revolutionary pump is designed to consume 40% less energy. Added variable speed technology offers further power savings.

The E10 pump is compact and lightweight, less than 5 lbs. It is whisper quiet and programmable designed with the latest EC technology.

The flow rate dependent on the differential pressure control, adjusts the pump performance continuously and automatically to the requirements of the system.

Features:

• Get 98 watts of performance for only 65 watts of power
• Domestic or international 50 or 60Hz same high flow
• Compact Design
• Consumes 40% less energy
• Lightweight, less than 5 lbs
• Open Impeller - Resistant to Clogging
• Dry Run Protection

Applications:

• Water Circulation
• Aquarium Circulation
• Chiller Systems
• Saltwater and Freshwater
• Ozone Treatment

Pump

• Capacities: 15 GPM
• Max Head: 20
• Pipe Connections:
• and 1 Barb Suction and Discharge
• MPT Suction and Discharge
• Maximum Working Pressure: 50 PSI
• Maximum Temperature: 140 F
• Rotation: counter clockwise when
• viewed from the motor end

Motor

• Electronically Commutated AC/DC/AC Spherical Motor
• Canned Spherical Type Motor
• 115 Volt 62 Watts 60 Hz, 3100 RPM
• 230 Volt 71 Watts 60 Hz, 3200 RPM
• Automatic Overload Protection
